| Mechanical data | |
|---|---|

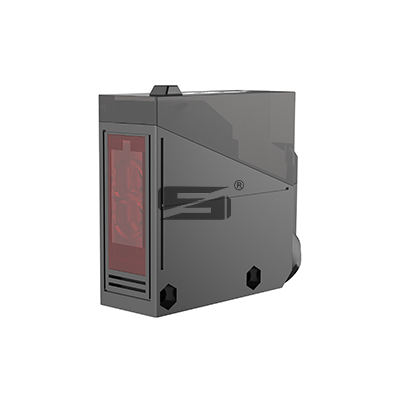

| Housing | Rectangular |
| Dimensions | Q65x25x65mm |
| Housing material | Plastic |
| Sensing face material | Plastic |
| Electrical data | |
|---|---|
| Function principle | Diffuse refiection sensor |
| Type of light | Infrared LED（Invisible light） |
| Operating voltage | 24-240V AC/12-240V DC |
| Current consumption | ≤3w |
| Power-up pulse protection | Yes |
| Outputs | |
|---|---|
| Electrical design | Relay |
| Output function | complementary |
| Max. voltage drop switching output | ≤0V |
| Permanent current rating of switching output | ≤3A/240V AC;3A/30V DC |
| Residual current | ≤0.01mA |
| Response time | ≤30ms |
| Detection zone | |
|---|---|
| Standard target | 100×100mm(white paper) |
| Sensing range | 700mm |
| Adjustment | 10-700mm |
| Displays | |
|---|---|
| Operating LED | LED，Yellow |
| Accuracy / deviations | |
|---|---|
| Correction factor | White Kodak paper 100% / white paper 80% / newsprint 60% / gray Kodak paper 18% / Black Kodak paper 6% / black plastic 14% / car tire 15% / white plastic 80% |
| Correction factor | 5...20% |
| Temperature drift [% of Sr] | ≤10% |
| Operating conditions | |
|---|---|
| Ambient temperature | ﹣10....﹢55℃ |
| Light immunity | Incandescent lamp: 5,000 lx max./ Sunlight: 10,000 lx max. |
| Protection class | IP65 |
| Tests / Insulation resistance | |
|---|---|
| EMC | According to EN60947-5-2 |
| Insulation resistance | 50MΩ min.（at 500VDC）betwencurrent carry parts an case |
| Approvals | CE |
| Remarks | |
|---|---|
| Accessories (supplied) | screwdriver |
| Pack quantity | 1PCS |
| Weight | 45g |
Wiring Diagram
Scale drawing

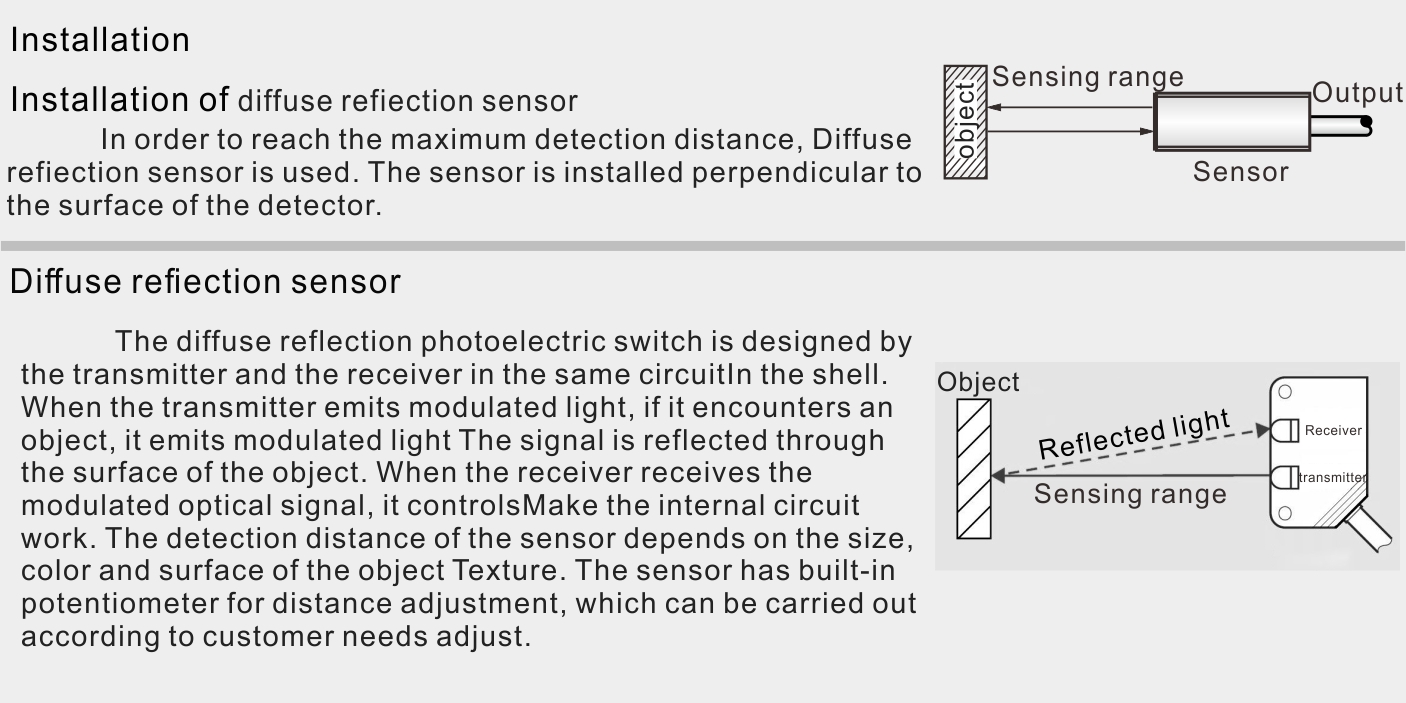

Installation
