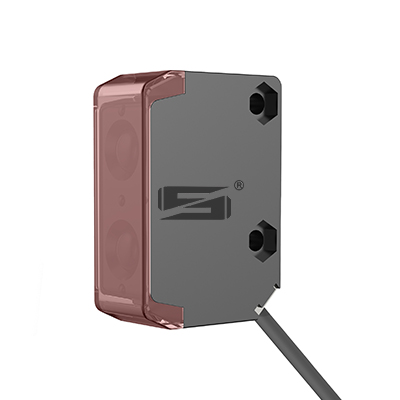

| Mechanical data | |
|---|---|
| Housing | Rectangular |
| Dimensions | Q60x20x60mm |
| Housing material | Plastic |
| Sensing face material | Plastic |
| Electrical data | |
|---|---|
| Function principle | Through-beam sensor |
| Type of light | Infrared LED（Invisible light） |
| Operating voltage | 24-240V AC/12-240V DC |
| Current consumption | ≤3w |
| Power-up pulse protection | Yes |
| Outputs | |
|---|---|
| Electrical design | Relay |
| Output function | complementary |
| Max. voltage drop switching output | ≤0V |
| Permanent current rating of switching output | ≤3A/240V AC;3A/30V DC |
| Residual current | ≤0.01mA |
| Response time | ≤30ms |
| Detection zone | |
|---|---|
| Standard target | ≥φ20mm（Opaque object） |
| Sensing range | 10m |
| Displays | |
|---|---|
| Operating LED | LED，Yellow |
| Accuracy / deviations |
|---|
| Operating conditions | |
|---|---|
| Ambient temperature | ﹣10....﹢55℃ |
| Light immunity | Incandescent lamp: 5,000 lx max./ Sunlight: 10,000 lx max. |
| Protection class | IP65 |
| Tests / Insulation resistance | |
|---|---|
| EMC | According to EN60947-5-2 |
| Insulation resistance | 50MΩ min.（at 500VDC）betwencurrent carry parts an case |
| Approvals | CE |
| Remarks | |
|---|---|
| Pack quantity | 1PCS |
| Weight | 225g |
Wiring Diagram

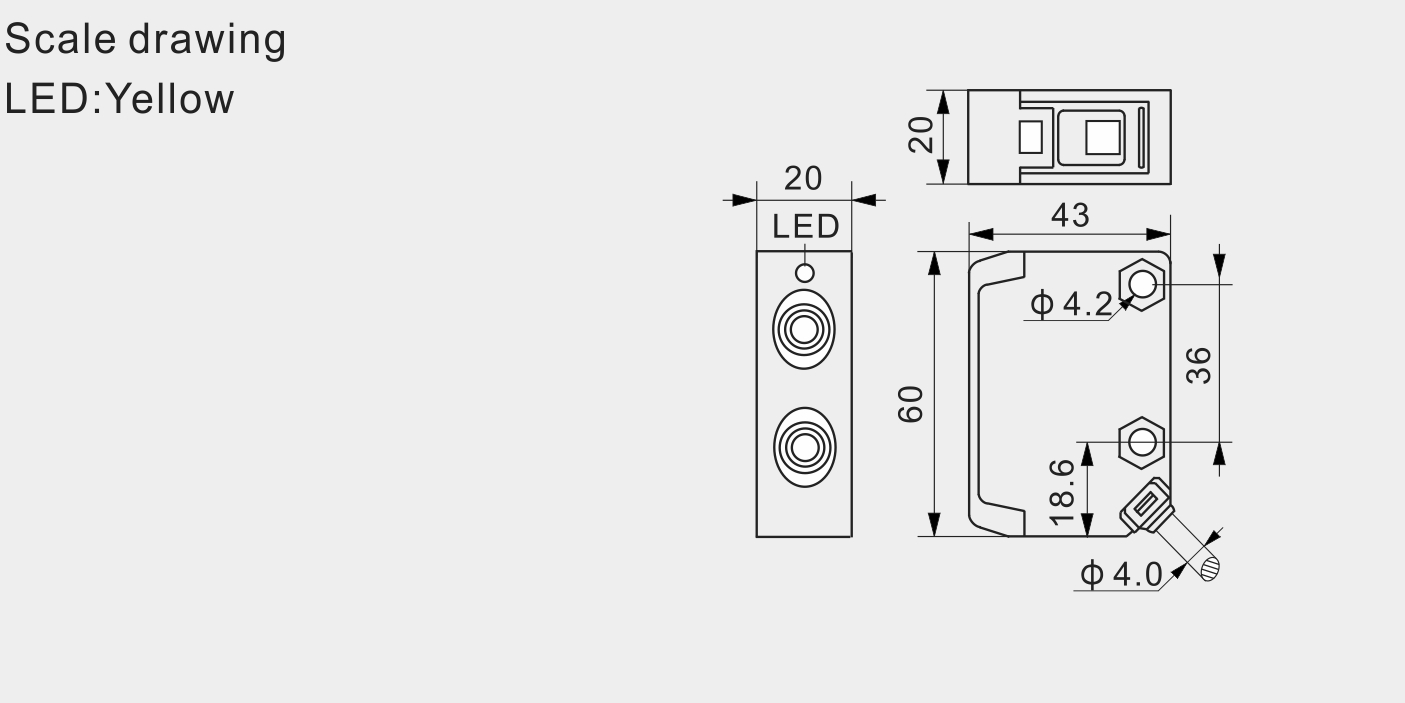

Scale drawing
Installation
