| Mechanical data | |
|---|---|
| Housing | Rectangular |
| Dimensions | 80x80x40mm |
| Housing material | Plastic |
| Sensing face material | Plastic |
| Electrical data | |
|---|---|
| Mounting conditions | non-flush mountable |
| Operating voltage | 20-250V AC |
| Power-up pulse protection | Yes |
| Outputs | |
|---|---|
| Electrical design | AC 2-wire |
| Output function | normally open |
| Max. voltage drop switching output | ≤8V |
| Permanent current rating of switching output | ≤300mA |
| Residual current | ≤3mA |
| Switching frequency | 10Hz |
| Detection zone | |
|---|---|
| Standard target | 150×150×1mm（ST37） |
| Sensing range | 70.0mm |
| Real sensing range Sr | 70.0mm±10% |
| Adjustment | 7.0...70.0mm |
| Increased sensing range | NO |
| Displays | |
|---|---|
| Operating LED | switching status(LED，Yellow)；Operation（LED,Green） |
| Accuracy / deviations | |
|---|---|
| Correction factor | steel: 1/water 1/glass 0.6/ceramic 0.5/PVC 0.4 |
| Hysteresis [% of Sr] | 1...15% |
| Repeatability [% of Sr] | 1...5% |
| Temperature drift [% of Sr] | ≤10% |
| Operating conditions | |
|---|---|
| Ambient temperature | -25～+80℃ |
| Protection class | IP67 |
| Tests / Insulation resistance | |
|---|---|
| EMC | According to EN60947-5-2 |
| Insulation resistance | 50MΩ min.（at 500VDC）betwencurrent carry parts an case |
| Approvals | CE |
| Remarks | |
|---|---|
| Accessories (supplied) | screwdriver |
| Pack quantity | 1PCS |
| Weight | 395g |
Wiring Diagram
Scale drawing

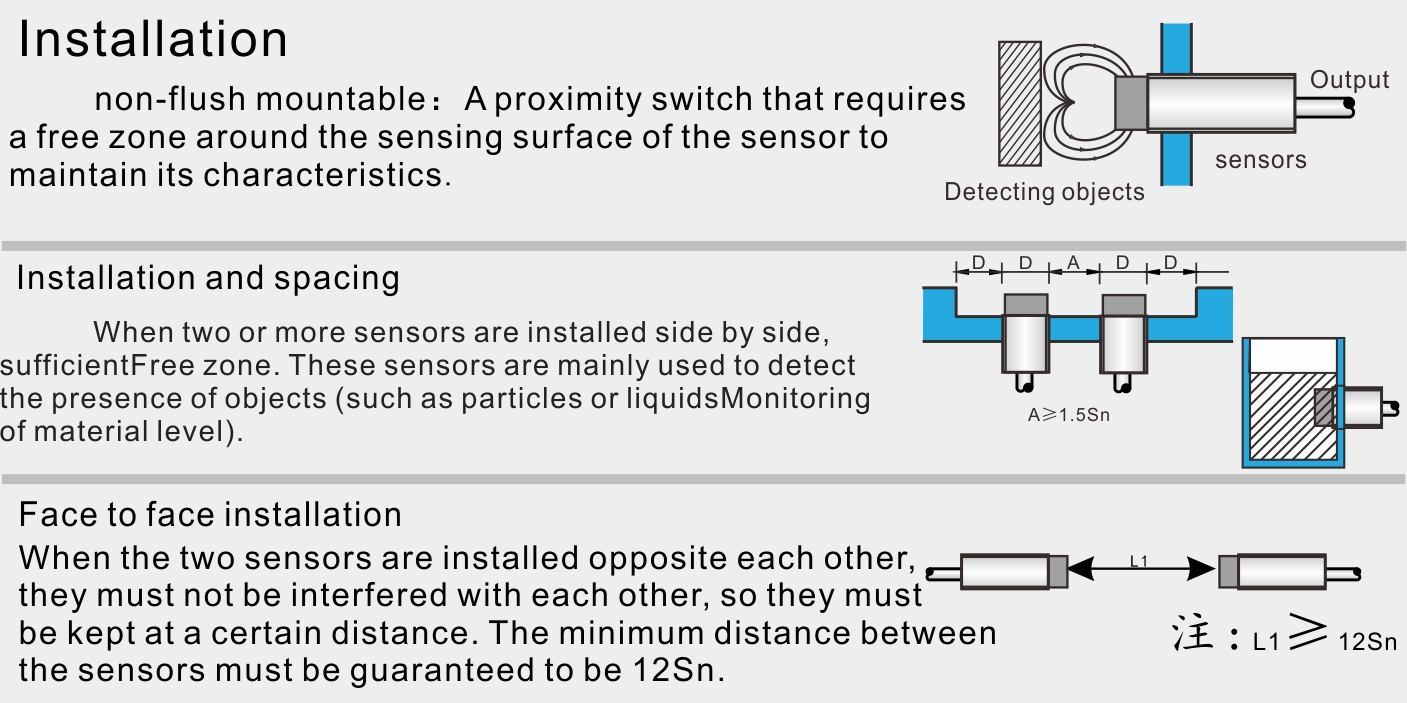

Installation
