| Mechanical data | |
|---|---|
| Housing | Cylindrical thread design |
| Thread designation | M30x1.5 |
| Diameter | φ30mm |
| Dimensions | M30x1.5mm/L=50mm |
| Thread length | 37.5mm |
| Housing material | stainless steel |
| Sensing face material | stainless steel |
| Electrical data | |
|---|---|
| Mounting conditions | non-flush mountable |
| Operating voltage | 20-250V AC |
| Power-up pulse protection | Yes |
| Outputs | |
|---|---|
| Electrical design | AC 2-wire |
| Output function | normally closed |
| Max. voltage drop switching output | ≤8V |
| Permanent current rating of switching output | ≤300mA |
| Residual current | ≤3mA |
| Switching frequency | 25Hz |
| Detection zone | |
|---|---|
| Standard target | 75×75×1mm（铁ST37） |
| Sensing range | 25.0mm |
| Real sensing range Sr | 25.0mm±10% |
| Increased sensing range | Yes |
| Displays | |
|---|---|
| Operating LED | LED，Yellow |
| Accuracy / deviations | |
|---|---|
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 /copper: 0.1 |
| Hysteresis [% of Sr] | 1...15% |
| Repeatability [% of Sr] | 1...5% |
| Temperature drift [% of Sr] | ≤10% |
| Operating conditions | |
|---|---|
| Ambient temperature | -25～+80℃ |
| Protection class | IP67 |
| Tests / Insulation resistance | |
|---|---|
| EMC | According to EN60947-5-2 |
| Insulation resistance | 50MΩ min.（at 500VDC）betwencurrent carry parts an case |
| Approvals | CE |
| Remarks | |
|---|---|
| lock nuts | 2PCS |
| Pack quantity | 1PCS |
| Weight | 136g |

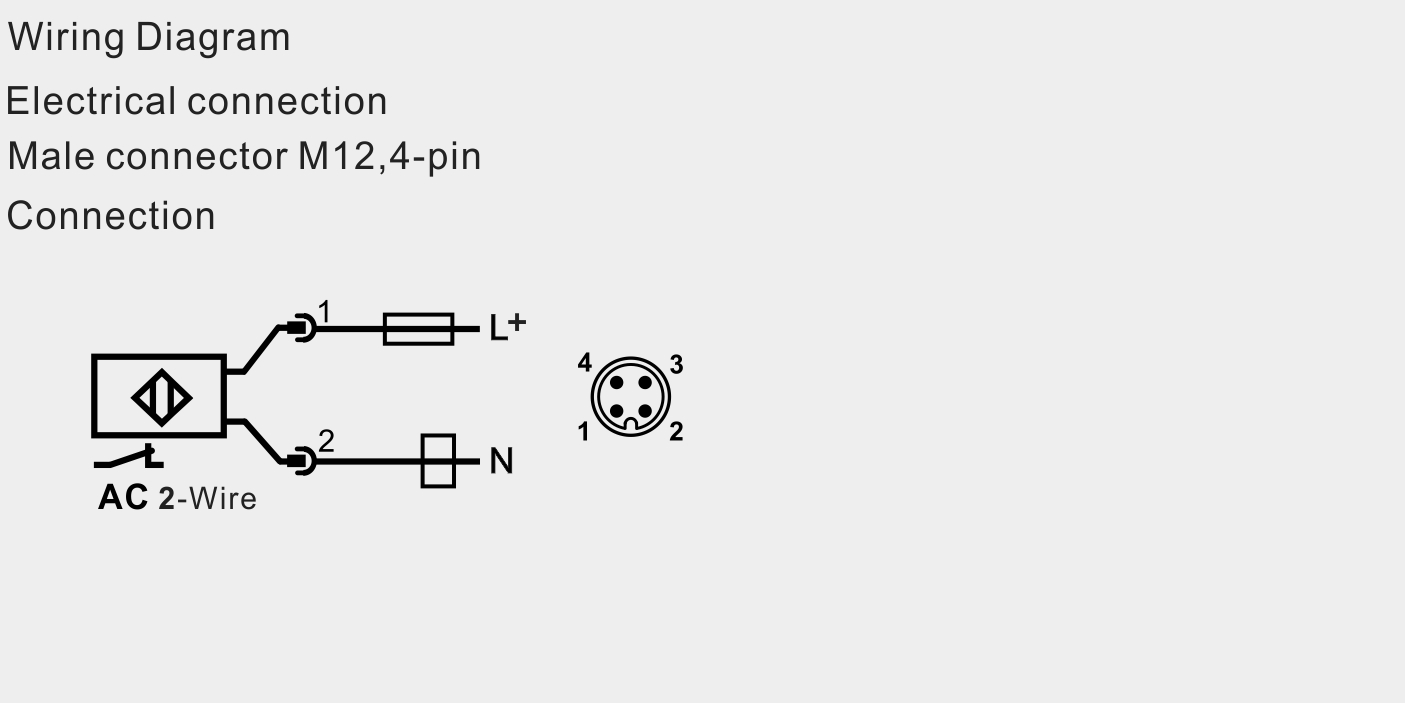

Wiring Diagram
Scale drawing
Installation
